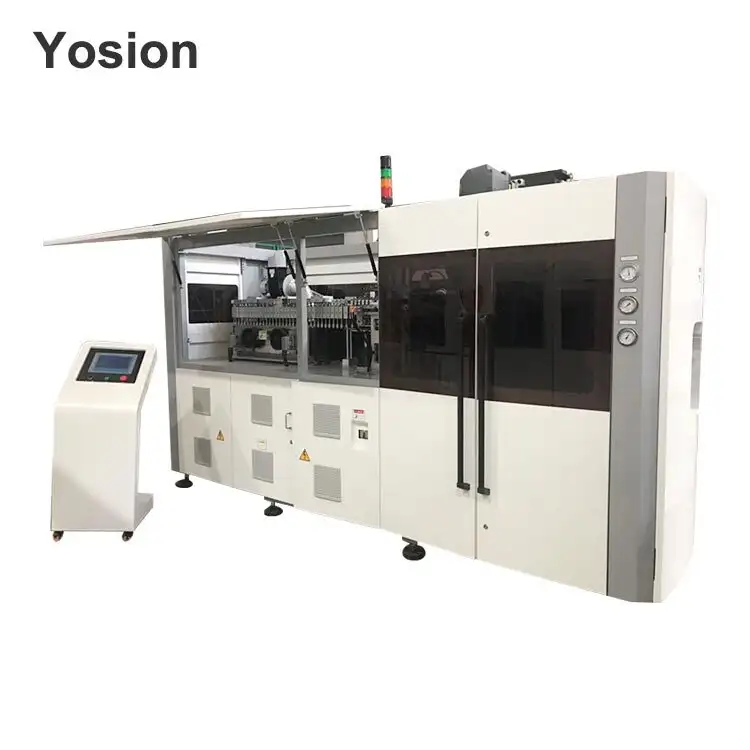

High Speed Full Electric Servo Pet Bottle Blow Molding machine

PRODUCT DETAILS

The brand from the United States, north of California, by the Pacific Ocean and

INTRODUCTION

Yosion All Electric High speed HS series PET bottle blow molding machine is a completely new generation of linear full servo blow molding machine, distinguished by its high speed, low power and low compressed air consumption, featured by the excellent structure design, small space occupation, less noise and high stability, meanwhile conforms to national beverage sanitary standards. This machine symbolizes the highest level of national linear blowing machines. It is the ideal bottle making equipment for medium and large enterprises.

Yosion HS Series Optional items:
1. HP air recovery system
After the bottle blowing, high-pressure air can be recycled and used again for the pre-blowing and machine physical movement.
2. Oven and preform temperature detection system
Detection system detects temperature of oven and the temperature of performs. When the preform temperature does not reach the set blowing temperature, blowing workstation will alarm, not blown.

High speed HS Series Product Advantages

Bottle Preform Feeding system

Continuous and high speed preform feeding system. Multiple protection device for precise preform feeding. the preform neck is well protected.

Transfer and heating system

Horizontal rotation transfer system to eliminate preform flipping. Compact preform-chain pitch design for efficient heating and reduce energy consumption. Cooling ramps througout for maximum preform neck pretection. Optimized exhausting and preform temperature monitoring. Easy access for heater maintenance and lamp changing.

Bottle preform moving and bottle take out system

Servo motor driven preform transfer for quick transfer and precise preform locating.

Bottle stretch and blowing system

Servo motor driven system with synchronized base blow mold precision electromagnetic valves for fast responding time and high volume production.

Control system

Touch-panel control system for simple operation, 9 inch LCD touch screen with 64K colors.Adopting modularized design concept, to make it convenient and cost-saving for the maintenance and changing spare parts.

Servo driving and cam linking blowing section

The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement, equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity.

Other

All electric mechanism to ensure high-speed operation and precise locating.
Design for quick mould change.
Low energy consumption, low wear, low pollution.

Configuration of main components of the machine

Remark:This configuration without air recycle, the price will be different if add recycle system

这里可以自定义设置

Standard

	Name	Brand	Place of Origin	Remarks
1	Controller PLC	SIEMENS	GERMANY
2	Display Monitor/ Touch Screen	SIEMENS	GERMANY	9 inch
3	Servo motor	SIEMENS	GERMANY
4	Inverter	SIEMENS	GERMANY
5	Contactor Switch	SCHNEIDER	FRANCE
6	Photoelectric Switch	AUTONICS	KOREA
7*	Proximity Switch	AL IF	TAIWAN
8*	Magnetic Switch	ALIF	TAIWAN
9	Breaker	CHNT	CHINA
10	Group Valve	Empty oil	CHINA
11	Magnetic Valve	FESTO	GERMANY
12	Air Cylinder	AIRTAC	TAIWAN
13	One-way Valve	FT ITALY	ItalyItaly
14	Muffler		CHINA
15*	High Pressure Valve	Empty oil	CHINA
16*	Blowing Valve	AIRTAC	TAIWAN
17*	High Pressure Filter	ICAN	CHINA

High allocation

	Name	Brand	Place of Origin	Remarks
1	Controller PLC	SIEMENS	GERMANY
2	Display Monitor/ Touch Screen	SIEMENS	GERMANY	9 inch
3	Servo motor	SIEMENS	GERMANY
4	Inverter	SIEMENS	GERMANY
5	Contactor Switch	SCHNEIDER	FRANCE
6	Photoelectric Switch	AUTONICS	KOREA
7	Proximity Switch	IFM	GERMANY
8	Magnetic Switch	FESTO	GERMANY	SMC
9	Breaker	CHNT	CHINA
10	Group Valve	Empty oil	CHINA
11	Magnetic Valve	FESTO	GERMANY
12	Air Cylinder	SMC	JAPAN
13	One-way Valve	FT ITALY	ITALY
14	Muffler	ALWITCC	USA	SMC
15	High Pressure Valve	NOOKER	GERMANY
16	Blowing Valve	SEITZ SWIFZERLAND	Switzerland
17	High Pressure Filter	OMEGA	TALY

High speed machine series machine

Video Center

MACHINE OPERATION DETAILS

Specializes in the research and manufacture of two-step PET/PP bottle blowing machine

PARAMETER

AL-6S High Speed full Electric PET Bottle Blow Molding Machine With Capacity of 9000BPH

BOTTLE	Theoretical output	9000Pcs/h
	Max. Volume	0.75L
	Max. height	280mm
	Max. diameter	70mm
	Max.neck size	30mm
	Number of cavities	6
MOULD	Spindle chain pitch	38.1mm
MOULD	Cavity pitch	85mm
ELECTRICAL	Max heating Power	40KW
	Motor power	9+2.5 KW
	Total power	52KW
	Voltage/Frequency	380V±10%50HZ 220V±10%60HZ
AIR SYSTEM	Blowing pressure	35Bar
AIR SYSTEM	High pressure comsuming	5000L/min
MOULD COOLING WATER	Operating pressure	3-5Bar
	Temperatue range	10-12℃
	Flow Rate	50L/min
	Cooling capacity	5HP
HEATER COOLING WATER	Operating pressure	3-5Bar
	Temperatue range	10-12℃
	Flow Rate	50L/min
	Cooling capacity	5HP
MACHINE SIZE	Size（LWH）	3.61.32.3M
MACHINE SIZE	Weight	4000KG

AL-8 High Speed full Electric PET Bottle Blow Molding Machine With Capacity of 12000BPH

ITEM		AL-8
BOTTLE	Theoretical output	12000Pcs/h
	Max. Volume	0.75L
	Max. height	280mm
	Max. diameter	75mm
	Max.neck size	30mm
	Number of cavities	8
MOULD	Spindle chain pitch	38.1mm
MOULD	Cavity pitch	85mm
ELECTRICAL	Max heating Power	85KW
	Motor power	12+5KW
	Total power	97KW
	Voltage/Frequency	380V±10%50HZ 220V±10%60HZ
AIR SYSTEM	Blowing pressure	35Bar
AIR SYSTEM	High pressure comsuming	10000L/min
MOULD COOLING WATER	Operating pressure	3-5Bar
	Temperatue range	10-12℃
	Flow Rate	50L/min
	Cooling capacity	5HP
HEATER COOLING WATER	Operating pressure	3-5Bar
	Temperatue range	10-12℃
	Flow Rate	50L/min
	Cooling capacity	5HP
MACHINE	Size（LWH）	4.81.32.3M
MACHINE	Weight	5000KG

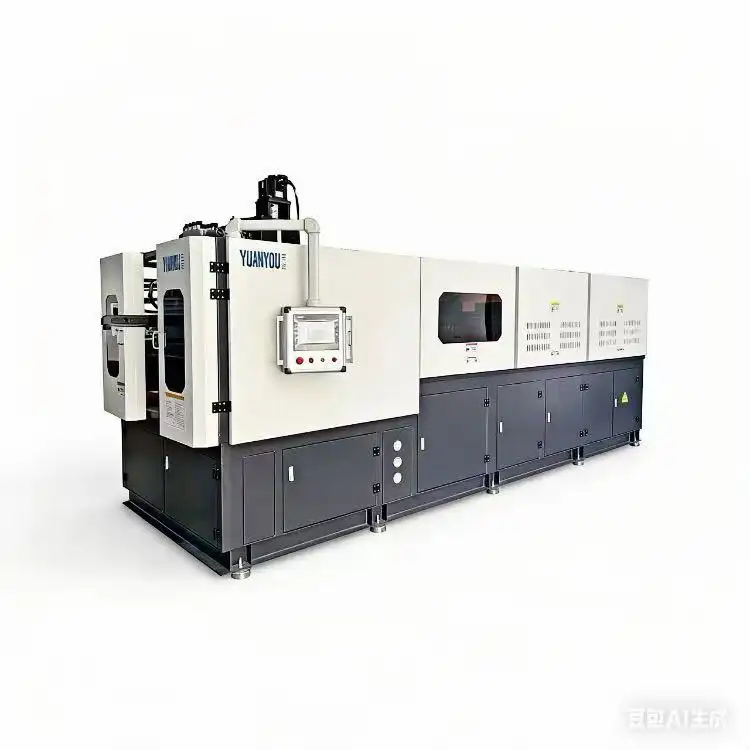

Water bottle high speed full Electric servo PET Bottle Blow Molding Machine Specification
