YUANYOU Committed to stable performance automatic PET bottle blowing machine production line since 1990s.

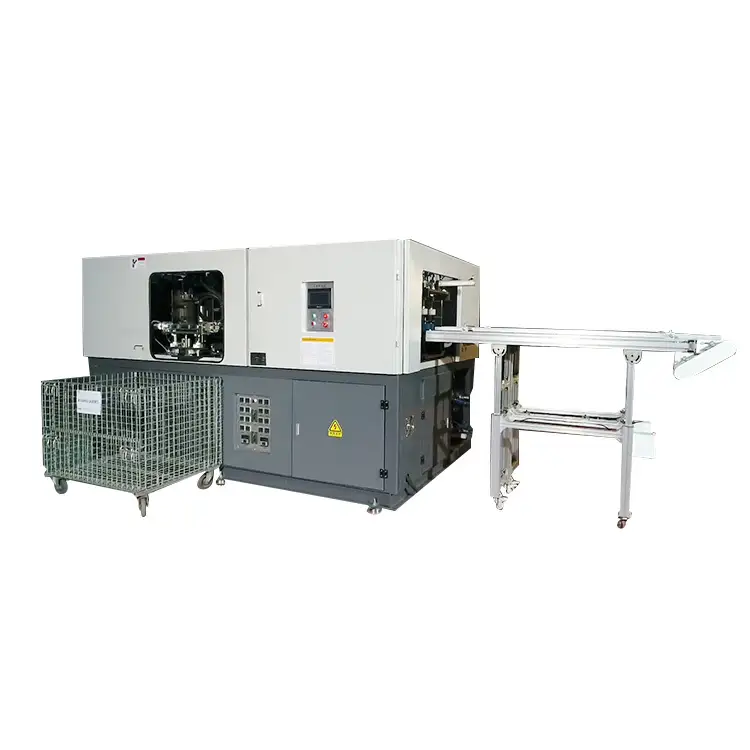

Fully automatic pet blow moulding machine below 5L jar YK5000GK,YK5000-2GK 1
Fully automatic pet blow moulding machine below 5L jar YK5000GK,YK5000-2GK 1

Fully automatic pet blow moulding machine below 5L jar YK5000GK,YK5000-2GK

    oops...!

    no product data.

    Go to homepage

    Machine Model To Recommend

    Model

    Volume

    Neck

    Max dia

    Output

    YK5000GK

    <5000ml

    70-150mm

    175mm

    650bph

    HK5000-2GK

    <5000ml

    70-125mm

    175mm

    1200bph

    INTRODUCTION

    Fully automatic pet blow moulding machine below 5L jar YK5000GK,YK5000-2GK 2

    Parameter Table

    GENERAL INFORMATION

    Unit

    YK5000GK

    HK5000-2GK



    container volume

    L

    5L

    5L

    Productspecification

    cavity number



    1

    2

    max container Dia

    mm

    175

    175

    max.container height

    mm

    340

    340

    maximun thread size

    mm

    70-150

    70-125

    Machine specification

    theoretical yield

    bph

    650

    1200

    the opening stroke

    mm

    220

    220

    mold thickness

    mm

    250

    250

    mould center distance

    mm

    200

    200

    total power

    kw

    26

    50

    the actual use of power

    kw

    10--15

    20--25

    appearance size

    m

    3.3*1.75*2

    3.3*2.1*2

    weighre

    Kg

    2000

    4000

    Air System

    working pressure

    bar

    10

    10

    low air consumption

    m3/min

    1.6

    2

    blowing pressure

    bar

    30

    30

    high pressure gas consumption

    m3/min

    2

    4

    Chiller Water

    operature pressure

    bar

    5

    5

    temperature range

    10

    10

    water consumption

    L/min

    30

    45

    Machine size

    appearance size

    M

    0.3*2*1.3

    0.3*2*1.3(2)

    weight

    kg

    20

    40

    MACHINE OPERATION DETAILS

    Specializes in the research and manufacture of two-step PET/PP bottle blowing machine

    Fully automatic pet blow moulding machine below 5L jar YK5000GK,YK5000-2GK 3
    HK5000-2GK-SF2-1
    Fully automatic pet blow moulding machine below 5L jar YK5000GK,YK5000-2GK 4
    HK5000-2GK-SF2-2
    Fully automatic pet blow moulding machine below 5L jar YK5000GK,YK5000-2GK 5
    HK5000-2GK-SF2-3
    Fully automatic pet blow moulding machine below 5L jar YK5000GK,YK5000-2GK 6
    HK5000-2GK-SF2-4
    Fully automatic pet blow moulding machine below 5L jar YK5000GK,YK5000-2GK 7
    HK5000-2GK-SF2-5
    Fully automatic pet blow moulding machine below 5L jar YK5000GK,YK5000-2GK 8
    HK5000-2GK-SF2-6
    Fully automatic pet blow moulding machine below 5L jar YK5000GK,YK5000-2GK 9
    HK5000-2GK-SF2-7
    Fully automatic pet blow moulding machine below 5L jar YK5000GK,YK5000-2GK 10
    HK5000-2GK-SF2-8

    PARAMETER

    FULL AUTOMATIC PET Jar blow molding machine below 5L jar YK5000GK,YK5000-2GK

    MACHINE ADVANTAGES

    *apply to widely neck jar, it can attach to injection machine, packing machine. One worker could operate several machines simultaneously

    *Clamping servo can save low pressure gas 60%-70%, on the one hand, now with air compressor can invest less money, on the other hand, the production can save electricity, the money will be saved in a moment
    *Close mold and drive servo can linkage, improve the efficiency of 0.5-0.8s
    *Servo stretch with easy control   for stretch speed  ,can control the stretch rod length at screen computer , stable production .
    *servo preform feeding very stable feed preform and save air .

    *Adopt touch-type color HMI SYSTEM,easy to operate.
    *All spares CNC processing,make sure all parts standard.
    *bottle outlet system is able to add a linking unit and combine with conveyor system to connect to the filling machine.
    *preform holder we have patented technology, our machine can change preform holder easier and fast within 5 minutes when blow different neck bottle , no need stop machine.

    Suitable bottle

    Can blow all kinds of PET widely neck jars which contain  nuts tea, spices  cosmetics,etc...

    YK5000GK,YK5000-2GK


    Color

    Blue, white or custom made

    Component parts

    PLC

    SIEMENS (Germany)

    Touch Screen

    Weinview (Taiwan)

    Cylinder

    AIRTAC (Taiwan)

    Working Valve

    ARK (Korea)

    Magnetic Switch

    ALIF (Taiwan)

    DC power

    Schneider (France)
