YUANYOU Committed to stable performance automatic PET bottle blowing machine production line since 1990s.

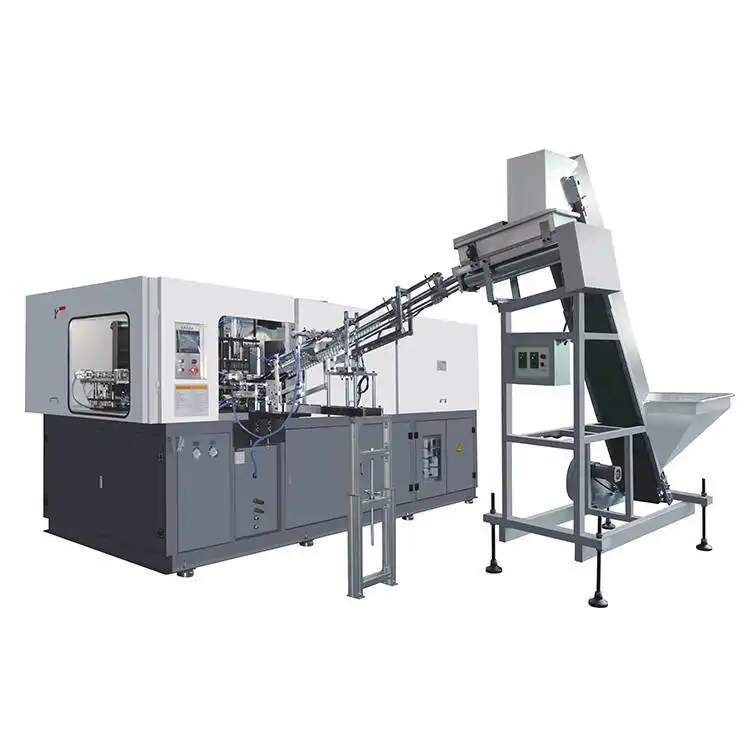

FULL Electric bottle blowing machine high speed fully automatic pet blow moulding machine 1
FULL Electric bottle blowing machine high speed fully automatic pet blow moulding machine 1

FULL Electric bottle blowing machine high speed fully automatic pet blow moulding machine

    oops...!

    no product data.

    Go to homepage

    PRODUCT DETAILS

    The brand from the United States, north of California, by the Pacific Ocean and

    FULL Electric bottle blowing machine high speed fully automatic pet blow moulding machine 2
    FULL Electric bottle blowing machine high speed fully automatic pet blow moulding machine 3
    FULL Electric bottle blowing machine high speed fully automatic pet blow moulding machine 4
    FULL Electric bottle blowing machine high speed fully automatic pet blow moulding machine 5

    INTRODUCTION

    Use preform blowing bottle , jar etc

    We can make machine with 1 cavity , 2 cavity ,3 cavity , 4 cavity , 6 cavity and 8 cavity to meet customer production demand .

    SCOPE OF APPLICATION

    water bottle,oil bottle, medical container, juice bottle, tea bottle, spices jars and bottle carbonated drinks bottle ,cosmetics bottle ,shampoo bottle, nuts jar etc.

    FULL Electric bottle blowing machine high speed fully automatic pet blow moulding machine 6

    MACHINE OPERATION DETAILS

    Specializes in the research and manufacture of two-step PET/PP bottle blowing machine

    FULL Electric bottle blowing machine high speed fully automatic pet blow moulding machine 7
    Heating
    FULL Electric bottle blowing machine high speed fully automatic pet blow moulding machine 8
    Servo stretch
    FULL Electric bottle blowing machine high speed fully automatic pet blow moulding machine 9
    Bottle out put
    FULL Electric bottle blowing machine high speed fully automatic pet blow moulding machine 10
    Blowing bottle
    FULL Electric bottle blowing machine high speed fully automatic pet blow moulding machine 11
    Feeding preform
    FULL Electric bottle blowing machine high speed fully automatic pet blow moulding machine 12
    Bottle out put (2)
    FULL Electric bottle blowing machine high speed fully automatic pet blow moulding machine 13
    Feeding preform (2)
    FULL Electric bottle blowing machine high speed fully automatic pet blow moulding machine 14
    Sensor

    PARAMETER

    FULL AUTOMATIC SERVO PET bottle blow molding machineYK2000-4

    MACHINE ADVANTAGES

    *Clamping servo can save low pressure gas 60%-70%, on the one hand, now with air compressor can invest less money, on the other hand, the production can save electricity, the money will be saved in a moment
    *Close mold and drive servo can linkage, improve the efficiency of 0.5-0.8s
    *Servo stretch with easy control   for stretch speed  ,can control the stretch rod length at screen computer , stable production .
    *Servo preform feeding very stable feed preform and save air .

    *Adopt touch-type color HMI SYSTEM,easy to operate.
    *All spares CNC processing,make sure all parts standard.
    *Bottle outlet system is able to add a linking unit and combine with conveyor system to connect to the filling machine.
    *Preform holder we have patented technology, our machine can change preform holder easier and fast within 5 minutes when blow different neck bottle , no need stop machine.

    Suitable bottle

    Can blow all kinds of PET bottles which contain water oil, medical, juice, tea, spices carbonated drinks,cosmetics,etc.

    Bottle Size

    Max.Bottle Diameter

    100mm



    Max.Bottle Height

    340mm



    Max.Screw Size

    45mm



     Blow Moulding Machine

    Model

    YS2000 -4SF3



    Container Volume

    2L



    No.of Cavity

    4



    Mould Stroke

    125mm



    Mould Thickness

    200mm



    Total Power

    66kw



    Use Power

    20-30kw



    Theoretical Output

    4000bph(*)



    Air Compressor

    Working Pressure

    10bar



    Air Consuming

    2.4



    Blowing Pressure

    30bar



    Air Consuming

    4



    Water Cooling

    Operation pressure

    5 bar



    Temperature Range



    Water Consuming

    45L/min



    Component parts

    PLC

    SIEMENS (Germany)



    Touch Screen

    Weinview (Taiwan)



    Cylinder

    AIRTAC (Taiwan)



    Working Valve

    ARK (Korea)



    Magnetic Switch

    ALIF (Taiwan)



    DC power

    Schneider (France)



    Machine Size

    Blow machine 4.8*1.8*2 M, 4000kgs

    loader: 2.6*1.1*2.4M,250kgs



    Color

    Blue, white or custom made
