YUANYOU Committed to stable performance automatic PET bottle blowing machine production line since 1990s.

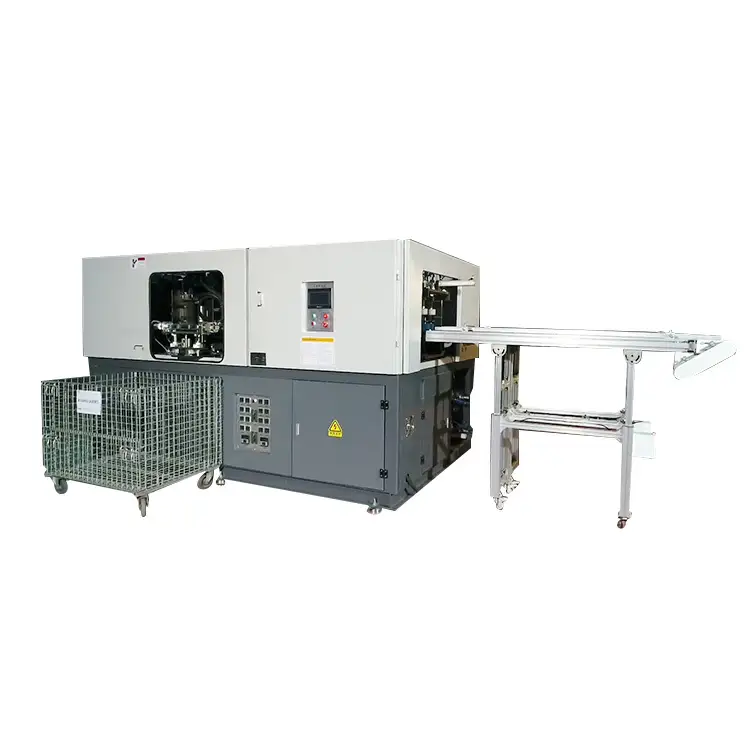

Fully automatic pet bottle blowing machine below 10L jar YK10000GK,YK10000-2GK 1
Fully automatic pet bottle blowing machine below 10L jar YK10000GK,YK10000-2GK 1

Fully automatic pet bottle blowing machine below 10L jar YK10000GK,YK10000-2GK

    oops...!

    no product data.

    Go to homepage

    Machine Model To Recommend

    Model

    Volume

    Neck

    Max dia

    Output

    YK10000GK

    <10L

    70-150mm

    225mm

    600bph

    HK10000-2GK

    <10L

    70-125mm

    225mm

    1000bph

    INTRODUCTION

    Fully automatic pet bottle blowing machine below 10L jar YK10000GK,YK10000-2GK 2

    Parameter Table

    GENERAL INFORMATION

    YK10000GK

    HK10000-2GK



    container volume

    10

    10

    Products pecification

    cavity number

    1

    2

    max container Dia

    225

    225

    max.container height

    340

    340

    maximun thread size

    70-150

    70-125

    Machine specification

    theoretical yield

    600

    1000

    the opening stroke

    270

    260

    mold thickness

    300

    300

    mould center distance

    250

    250

    total power

    66

    66

    the actual use of power

    10--15

    15--20

    appearance size

    3.4*1.85*2

    3.6*2.4*2

    weighre

    2500

    5000

    Air System

    working pressure

    10

    10

    low air consumption

    1.2

    2

    blowing pressure

    30

    30

    high pressure gas consumption

    1.6

    6

    Chiller Water

    operature pressure

    5

    5

    temperature range

    10

    10

    water consumption

    30

    60

    Machine size

    appearance size

    0.3*2*1.3

    0.3*2*1.3(2)

    weight

    20

    40

    MACHINE OPERATION DETAILS

    Specializes in the research and manufacture of two-step PET/PP bottle blowing machine

    Fully automatic pet bottle blowing machine below 10L jar YK10000GK,YK10000-2GK 3
    HK5000-2GK-SF2-1
    Fully automatic pet bottle blowing machine below 10L jar YK10000GK,YK10000-2GK 4
    HK5000-2GK-SF2-2
    Fully automatic pet bottle blowing machine below 10L jar YK10000GK,YK10000-2GK 5
    HK5000-2GK-SF2-3
    Fully automatic pet bottle blowing machine below 10L jar YK10000GK,YK10000-2GK 6
    HK5000-2GK-SF2-4
    Fully automatic pet bottle blowing machine below 10L jar YK10000GK,YK10000-2GK 7
    HK5000-2GK-SF2-5
    Fully automatic pet bottle blowing machine below 10L jar YK10000GK,YK10000-2GK 8
    HK5000-2GK-SF2-6
    Fully automatic pet bottle blowing machine below 10L jar YK10000GK,YK10000-2GK 9
    HK5000-2GK-SF2-7
    Fully automatic pet bottle blowing machine below 10L jar YK10000GK,YK10000-2GK 10
    HK5000-2GK-SF2-8

    PARAMETER

    FULL AUTOMATIC PET Jar blow molding machine below 5L jar YK5000GK,YK5000-2GK

    MACHINE ADVANTAGES

    *apply to widely neck jar, it can attach to injection machine, packing machine. One worker could operate several machines simultaneously

    *Clamping servo can save low pressure gas 60%-70%, on the one hand, now with air compressor can invest less money, on the other hand, the production can save electricity, the money will be saved in a moment
    *Close mold and drive servo can linkage, improve the efficiency of 0.5-0.8s
    *Servo stretch with easy control   for stretch speed  ,can control the stretch rod length at screen computer , stable production .
    *servo preform feeding very stable feed preform and save air .

    *Adopt touch-type color HMI SYSTEM,easy to operate.
    *All spares CNC processing,make sure all parts standard.
    *bottle outlet system is able to add a linking unit and combine with conveyor system to connect to the filling machine.
    *preform holder we have patented technology, our machine can change preform holder easier and fast within 5 minutes when blow different neck bottle , no need stop machine.

    Suitable bottle

    Can blow all kinds of PET widely neck jars which contain  nuts tea, spices  cosmetics,etc...

    YK10000GK,YK10000-2GK

    Color

    Blue, white or custom made

    Component parts

    PLC

    SIEMENS (Germany)

    Touch Screen

    Weinview (Taiwan)

    Cylinder

    AIRTAC (Taiwan)

    Working Valve

    ARK (Korea)

    Magnetic Switch

    ALIF (Taiwan)

    DC power

    Schneider (France)
