YUANYOU Committed to stable performance automatic PET bottle blowing machine production line since 1990s.

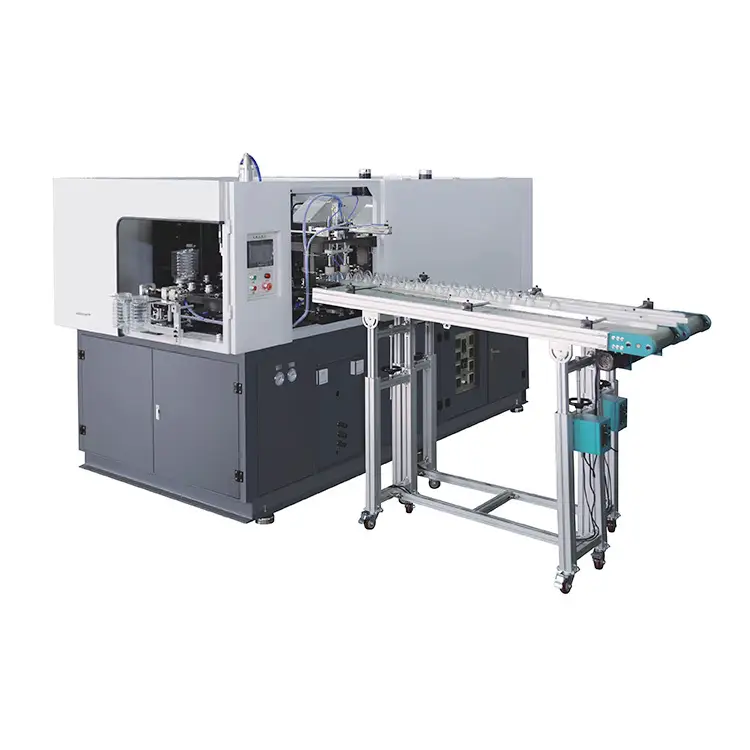

FULL AUTOMATIC   PET Jar blow molding machine below 3L jar YK1500-2GK,YK2000-2GK ,YK2000-4GK,YK2500-2GK ,YK2500-3 1
FULL AUTOMATIC   PET Jar blow molding machine below 3L jar YK1500-2GK,YK2000-2GK ,YK2000-4GK,YK2500-2GK ,YK2500-3 1

FULL AUTOMATIC PET Jar blow molding machine below 3L jar YK1500-2GK,YK2000-2GK ,YK2000-4GK,YK2500-2GK ,YK2500-3

    oops...!

    no product data.

    Go to homepage

    Machine Model To Recommend

    Model

    Volume

    Neck

    Max dia

    Output

    YK1500-2GK

    <1500ml

    60-80mm

    90mm

    2000bph

    YK2000-2GK

    <2000ml

    60-90mm

    100mm

    1800bph

    YK2500-2GK

    <2500ml

    70-100mm

    110mm

    1800bph

    YK3000GK

    <3000ml

    70-120mm

    130mm

    800bph

    YK3000-2GK

    <3000ml

    70-120mm

    130mm

    1600bph

    PRODUCT DETAILS

    The brand from the United States, north of California, by the Pacific Ocean and

    FULL AUTOMATIC   PET Jar blow molding machine below 3L jar YK1500-2GK,YK2000-2GK ,YK2000-4GK,YK2500-2GK ,YK2500-3 2
    FULL AUTOMATIC   PET Jar blow molding machine below 3L jar YK1500-2GK,YK2000-2GK ,YK2000-4GK,YK2500-2GK ,YK2500-3 3
    FULL AUTOMATIC   PET Jar blow molding machine below 3L jar YK1500-2GK,YK2000-2GK ,YK2000-4GK,YK2500-2GK ,YK2500-3 4
    FULL AUTOMATIC   PET Jar blow molding machine below 3L jar YK1500-2GK,YK2000-2GK ,YK2000-4GK,YK2500-2GK ,YK2500-3 5

    INTRODUCTION

    Use preform blowing bottle like foods container,oil container ,medicine bottle,chemical bottle etc
    We can make machine with 1 cavity , 2 cavity ,3 cavity , 4 cavity , 6 cavity and 8 cavity to meet customer production demand .

    SCOPE OF APPLICATION

    Water bottle,oil bottle, medical container, juice bottle, tea bottle, spices jars and bottle carbonated drinks bottle ,cosmetics bottle ,shampoo bottle, nuts jar ,thicker bottle etc.

    FULL AUTOMATIC   PET Jar blow molding machine below 3L jar YK1500-2GK,YK2000-2GK ,YK2000-4GK,YK2500-2GK ,YK2500-3 6

    Parameter Table

    GENERAL INFORMATION

    Unit

    YK1500-2GK

    YK2000-2GK

    YK2500-2GK

    YK3000GK

    YK3000-2GK



    container volume

    L

    1.5

    2

    2.5

    1

    3

    Productspecification

    cavity number



    2

    2

    2

    1

    2

    max container Dia

    mm

    90

    100

    110

    130

    130

    max.container height

    mm

    340

    340

    340

    340

    340

    maximun thread size

    mm

    60-80

    60-90

    70-100

    70-120

    70-120

    Machine specification

    theoretical yield

    bph

    2000

    1800

    1800

    800

    1600

    the opening stroke

    mm

    125

    125

    125

    160

    160

    mold thickness

    mm

    180

    180

    180

    200

    200

    mould center distance

    mm

    100

    110

    120

    150

    150

    total power

    kw

    50

    50

    50

    50

    66

    the actual use of power

    kw

    8--15

    8--15

    8--18

    8--15

    10--20

    appearance size

    m

    3.1*1.5*2

    3.1*1.5*2

    3.35*1.5*2

    3.1*1.5*2

    3.6*1.6*2

    weighre

    Kg

    2000

    2200

    2300

    2000

    2500

    Air System

    working pressure

    bar

    10

    10

    10

    10

    10

    low air consumption

    m3/min

    1.6

    1.6

    1.6

    1.6

    1.6

    blowing pressure

    bar

    30

    30

    30

    30

    30

    high pressure gas consumption

    m3/min

    2

    2

    2

    1.2

    2.5

    Chiller Water

    operature pressure

    bar

    5

    5

    5

    5

    5

    temperature range

    10

    10

    10

    10

    10

    water consumption

    L/min

    30

    30

    30

    30

    30

    Machine size

    appearance size

    M

    0.2*2*1.3(2)

    0.2*2*1.3(2)

    0.2*2*1.3(2)

    0.2*2*1.3

    0.3*2*1.3(2)

    weight

    kg

    30

    30

    30

    20

    40

    MACHINE OPERATION DETAILS

    Specializes in the research and manufacture of two-step PET/PP bottle blowing machine

    FULL AUTOMATIC   PET Jar blow molding machine below 3L jar YK1500-2GK,YK2000-2GK ,YK2000-4GK,YK2500-2GK ,YK2500-3 7
    YK2500-2GKD
    FULL AUTOMATIC   PET Jar blow molding machine below 3L jar YK1500-2GK,YK2000-2GK ,YK2000-4GK,YK2500-2GK ,YK2500-3 8
    YK2500-3GKD
    FULL AUTOMATIC   PET Jar blow molding machine below 3L jar YK1500-2GK,YK2000-2GK ,YK2000-4GK,YK2500-2GK ,YK2500-3 9
    YK2500-2GKD-1
    FULL AUTOMATIC   PET Jar blow molding machine below 3L jar YK1500-2GK,YK2000-2GK ,YK2000-4GK,YK2500-2GK ,YK2500-3 10
    YK2500-2GKD-2
    FULL AUTOMATIC   PET Jar blow molding machine below 3L jar YK1500-2GK,YK2000-2GK ,YK2000-4GK,YK2500-2GK ,YK2500-3 11
    YK2500-2GKD-3
    FULL AUTOMATIC   PET Jar blow molding machine below 3L jar YK1500-2GK,YK2000-2GK ,YK2000-4GK,YK2500-2GK ,YK2500-3 12
    YK2500-2GKD-4
    FULL AUTOMATIC   PET Jar blow molding machine below 3L jar YK1500-2GK,YK2000-2GK ,YK2000-4GK,YK2500-2GK ,YK2500-3 13
    YK2500-2GKD-5

    PARAMETER

    FULL AUTOMATIC PET Jar blow molding machine below 3L jar YK1500-2GK,YK2000-2GK ,YK2000-4GK,YK2500-2GK ,YK2500-3,YK3000GK,YK3000-2GK

    MACHINE ADVANTAGES

    *apply to widely neck jar, it can attach to injection machine, packing machine. One worker could operate several machines simultaneously

    *Clamping servo can save low pressure gas 60%-70%, on the one hand, now with air compressor can invest less money, on the other hand, the production can save electricity, the money will be saved in a moment
    *Close mold and drive servo can linkage, improve the efficiency of 0.5-0.8s
    *Servo stretch with easy control   for stretch speed  ,can control the stretch rod length at screen computer , stable production .
    *servo preform feeding very stable feed preform and save air .

    *Adopt touch-type color HMI SYSTEM,easy to operate.

    *All spares CNC processing,make sure all parts standard.
    *Bottle outlet system is able to add a linking unit and combine with conveyor system to connect to the filling machine.
    *Preform holder we have patented technology, our machine can change preform holder easier and fast within 5 minutes when blow different neck bottle , no need stop machine.

    Suitable bottle

    Can blow all kinds of PET widely neck jars which contain  nuts tea, spices  cosmetics,etc...

    YK1500-2GK,YK2000-2GK ,YK2000-4GK,YK2500-2GK ,YK2500-3,YK3000GK,YK3000-2GK

    Color

    Blue, white or custom made





    Component parts

    PLC

    SIEMENS (Germany)

    Touch Screen

    Weinview (Taiwan)

    Cylinder

    AIRTAC (Taiwan)

    Working Valve

    ARK (Korea)

    Magnetic Switch

    ALIF (Taiwan)

    DC power

    Schneider (France)
