YUANYOU Committed to stable performance automatic PET bottle blowing machine production line since 1990s.

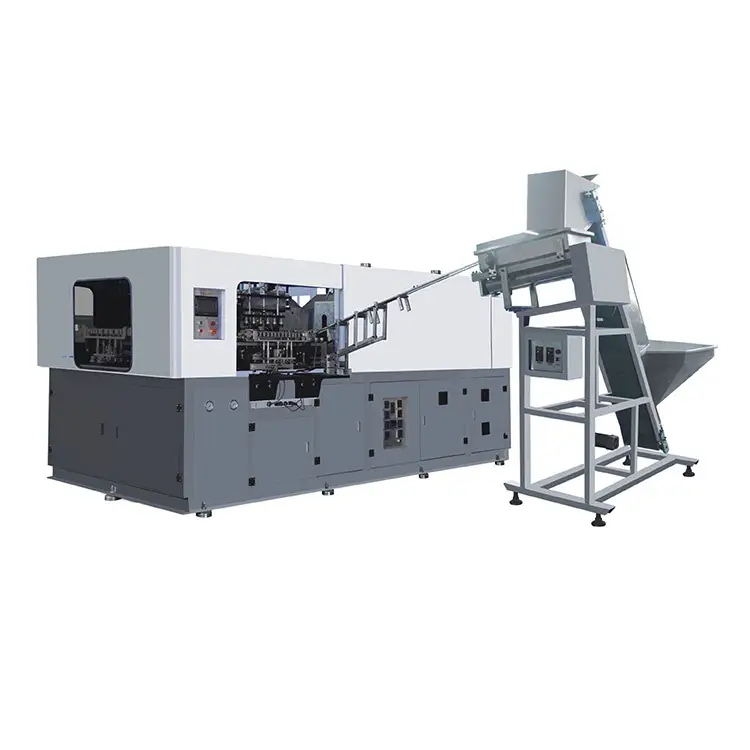

Bottle volume below 600ml pet bottle blow molding machine 1
Bottle volume below 600ml pet bottle blow molding machine 1

Bottle volume below 600ml pet bottle blow molding machine

    oops...!

    no product data.

    Go to homepage

    Machine Model To Recommend

    Model

    Volume

    Neck

    Max dia

    Output

    YK300A-2

    <300ml

    <30mm

    53mm

    2000bph

    YK600-3

    <600ml

    <40mm

    68mm

    3000bph

    YK600-4

    <600ml

    <40mm

    68mm

    4000bph

    YK600-6SF3

    <600ml

    <40mm

    68mm

    6600bph

    YK600-8SF3

    <600ml

    <40mm

    68mm

    8500bph

    PRODUCT DETAILS

    The brand from the United States, north of California, by the Pacific Ocean.PET bottle blower is defined as a production machine used to make bottles of different shapes and sizes. How it works is not complicated: depending on the applied air pressure, the bottle blower blows air into the heated bottle preform and is shaped with a specific PET bottle mold wrapped around it.

    Bottle volume below 600ml pet bottle blow molding machine 2
    Bottle volume below 600ml pet bottle blow molding machine 3
    Bottle volume below 600ml pet bottle blow molding machine 4
    Bottle volume below 600ml pet bottle blow molding machine 5

    INTRODUCTION

    Use preform blowing bottle like foods container,oil container ,medicine bottle,chemical bottle etc
    We can make machine with 1 cavity , 2 cavity ,3 cavity , 4 cavity , 6 cavity and 8 cavity to meet customer production demand .

    SCOPE OF APPLICATION

    Water bottle,oil bottle, medical container, juice bottle, tea bottle, spices jars and bottle carbonated drinks bottle ,cosmetics bottle ,shampoo bottle, nuts jar etc.

    Production process of pet blow molding machine
    The production process of a pet blow molding machine begins with the preparation of raw materials, typically PET resin in pellet form. These pellets are loaded into the hopper of the blow molding machine and fed into the extruder, where they are heated to their melting point and formed into a parison or hollow tube. The parison is then transferred to a mold cavity where compressed air is injected, forcing the molten material to take on the shape of the mold. Once cooled and solidified, the newly-formed PET container is ejected from the mold and trimmed to remove any excess material. Quality control measures such as leak testing and visual inspection ensure that each container meets industry standards before being sent for packaging. This intricate process requires precision engineering and skilled operators to produce high-quality PET bottles efficiently and effectively using a pet blow molding machine.

    Bottle volume below 600ml pet bottle blow molding machine 6
    Bottle volume below 600ml pet bottle blow molding machine 7

    PRODUCT DESCRIPTION

    Optimization design of a integrated templates, high strength,using lifetime
    Template precision machining,running rapid and stable.
    Can add high pressure gas recovery device as low pressure use.
    Frequency conversion constant temperature and layered heating system make heating equality,finished product stable.
    Auto-fault detection.
    Use the advanced touch-screen computer control,easy cooperation.
    Automatic feeding perform and picking up finished bottles.
    Modular design.

    Notice:Actual output depend on bottle shape and preform
    the above technical parameters are subject to continual update. please rake the real product as the base

    Benefits of pet blow molding machine
    The benefits of a Fully Automatic PET Bottle Blowing Machine are numerous and significant in the manufacturing industry. These Fully Automatic PET Bottle Blowing Machines offer efficiency, precision, and consistency in producing high-quality PET bottles for various applications such as beverages, personal care products, pharmaceuticals, and more. The advanced technology used in pet blow molding machines allows for faster production rates while maintaining superior quality control standards. Additionally, these machines are versatile and can accommodate different bottle sizes and shapes to meet specific customer requirements. This flexibility makes them ideal for businesses looking to expand their product offerings or customize their packaging solutions. With lower labor costs and reduced material waste compared to traditional manufacturing methods, pet blow molding machines provide a cost-effective solution that helps businesses increase their profitability and competitiveness in the market.

    MACHINE OPERATION DETAILS

    Specializes in the research and manufacture of two-step PET/PP bottle blowing machine

    Bottle volume below 600ml pet bottle blow molding machine 8
    YK600-6SF3-12
    Bottle volume below 600ml pet bottle blow molding machine 9
    YK600-6SF3-7
    Bottle volume below 600ml pet bottle blow molding machine 10
    YK600-6SF3-13
    Bottle volume below 600ml pet bottle blow molding machine 11
    YK600-6SF3-5
    Bottle volume below 600ml pet bottle blow molding machine 12
    YK600-6SF3
    Bottle volume below 600ml pet bottle blow molding machine 13
    YK600-6SF3-9
    Bottle volume below 600ml pet bottle blow molding machine 14
    Super Bottle Series 2
    Bottle volume below 600ml pet bottle blow molding machine 15
    Super Bottle Series 3

    PARAMETER

    FULL AUTOMATIC SERVO PET bottle blow molding machineYK2000-4

    MACHINE ADVANTAGES

    Servo for choose introduction:
    *Clamping servo can save low pressure gas 60%-70%, on the one hand, now with air compressor can invest less money, on the other hand, the production can save electricity, the money will be saved in a moment
    *Close mold and drive servo can linkage, improve the efficiency of 0.5-0.8s
    *Servo stretch with easy control   for stretch speed  ,can control the stretch rod length at screen computer , stable production .
    *servo preform feeding very stable feed preform and save air .

    All machine standard advantages:
    *Adopt touch-type color HMI SYSTEM,easy to operate.
    *All spares CNC processing,make sure all parts standard.
    *bottle outlet system is able to add a linking unit and combine with conveyor system to connect to the filling machine.
    *preform holder we have patented technology, our machine can change preform holder easier and fast within 5 minutes when blow different neck bottle , no need stop machine.

    Suitable bottle

    Can blow all kinds of PET bottles which contain water oil, medical, juice, tea, spices carbonated drinks,cosmetics,etc...

    Component parts

    PLC

    SIEMENS (Germany)

    Touch Screen

    Weinview (Taiwan)

    Cylinder

    AIRTAC (Taiwan)

    Working Valve

    ARK (Korea)

    Magnetic Switch

    ALIF (Taiwan)

    DC power

    Schneider (France)

    PRODUCT PARAMETERS

    GENERAL INFORMATION

    Unit

    YK300A-2

    YK600-3

    YK600-4

    YK600-6SF3

    YK600-8SF3



    container volume

    L

    0.3L

    0.6(1.5)

    0.6

    0.6

    0.6

    Productspecification

    cavity number



    2

    3(2)

    4

    6

    8

    max container Dia

    mm

    53

    68(90)

    68

    68

    68

    max.container height

    mm

    190

    250(340)

    250

    250

    250

    maximun thread size

    mm

    30

    40(45)

    40

    40

    40

    Machine specification

    theoretical yield

    bph

    2000

    3000(1800)

    4000

    6600

    8500

    the opening stroke

    mm

    110

    125

    125

    125

    105

    mold thickness

    mm

    180

    180

    180

    200

    200

    mould center distance

    mm

    60

    75

    75

    75

    75

    total power

    kw

    50

    50

    66

    66

    66

    the actual use of power

    kw

    5--8

    10--15

    10--20

    20--30

    30--40

    appearance size

    m

    2.3*1.3*1.8

    3.1*1.5*2

    3.6*1.6*2

    4.8*1.8*2

    6.1*1.95*2

    weighre

    Kg

    1000

    2200

    2500

    4000

    7000

    Air System

    working pressure

    bar

    10

    10

    10

    10

    10

    low air consumption

    m3/min

    1.2

    1.6

    1.6

    2.4

    2.4

    blowing pressure

    bar

    30

    30

    30

    30

    30

    high pressure gas consumption

    m3/min

    1.2

    2

    2.5

    4

    6

    Chiller Water

    operature pressure

    bar

    5

    5

    5

    5

    5

    temperature range

    10

    10

    10

    10

    10

    water consumption

    L/min

    20

    30

    45

    45

    45

    Machine size

    appearance size

    M

    2.4*1.1*2.2

    2.4*1.1*2.4

    2.6*1.1*2.4

    2.6*1.1*2.4

    2.8*1.1*2.8

    weight

    kg

    250

    250

    250

    250

    300

    Servo

    stretching device









    *

    *

    pushing device









    *

    *

    preform loading device









    *

    *
