Yosion Machinery Committed to stable performance automatic pet bottle blowing machine production line since 1990s

product-Yosion Machinery-Full Electrical Servo Normal Cylinder Blowing Machine-img
Home  >  Products  >  Fully Automatic PET Bottle Blowing Machine  >

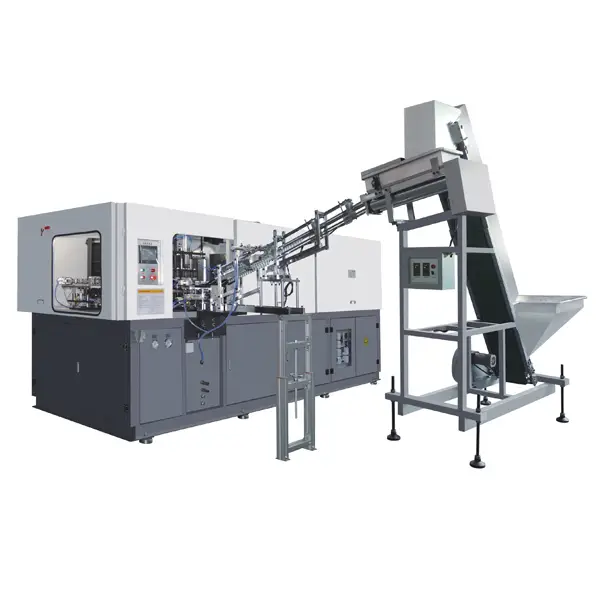

Full Electrical Servo / Normal Cylinder Blowing Machine

这里可以自定义设置
product-Full Electrical Servo Normal Cylinder Blowing Machine-Yosion Machinery-img-1
product-Yosion Machinery-img-1
Full Electrical Servo / Normal Cylinder Blowing Machine
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Trade Terms: EXW, FOB NINGBO, Door to door.

Payment Terms: T/T, Western Union, PayPal.

Delivery Time: 60 working days.

Packing:

Shipping: By sea

MOQ: 1SETS

Place of Origin: HUANGYAN,TAIZHOU City, ZHEJIANG Province, China

Certificate:ISO9001: 2008...CE


Add success, do you want to check your shopping cart?

该产品后台详情无内容

Professional Full automatic PET

Professional Full automatic PET bottle blowing machine for hand washing bottle、sanitizer bottle、liquid soap bottle、 disinfectant bottle、Alcohol bottle、cosmetics bottle、medicine bottle、 presticide bottle and other thicker bottle  making.
We have many kinds different blow molding machine can fit your production demand, whatever your bottle is big thickness or thin wall bottle, we have especially different structure at blowing machine , can make machine production very stable and also get high quality bog thickness bottle.
And also the different cavity number can be fit your capacity demand , such as 1000pcs/hour ,2000pcs/hour,3000pcs/hour,4000pcs/hour up to 8000pcs/hour.

product-Yosion Machinery-img-1
这里可以自定义设置

MACHINE ADVANTAGES

Servo for choose introduction:
*Clamping servo can save low pressure gas 60%-70%, on the one hand, now with air compressor can invest less money, on the other hand, the production can save electricity, the money will be saved in a moment
*Close mold and drive servo can linkage, improve the efficiency of 0.5-0.8s
*Servo stretch with easy control   for stretch speed  ,can control the stretch rod length at screen computer , stable production .
*servo preform feeding very stable feed preform and save air .

All machine standard advantages:
 *Adopt touch-type color HMI SYSTEM,easy to operate.
 *All spares CNC processing,make sure all parts standard.
 *bottle outlet system is able to add a linking unit and combine with conveyor system to connect to the filling machine.
 *preform holder we have patented technology, our machine can change preform holder easier and fast within 5 minutes when blow different neck bottle , no need stop machine.

Suitable bottle

Can blow all kinds of PET bottles which contain water oil, medical, juice, tea, spices carbonated drinks,cosmetics,etc...

Component parts

PLC

SIEMENS (Germany)

Touch Screen

Weinview (Taiwan)

Cylinder

AIRTAC (Taiwan)

Working Valve

ARK (Korea)

Magnetic Switch

ALIF (Taiwan)

DC power

Schneider (France)

GENERAL INFORMATION

Unit

YK600-4L

YK600-4XL

YK1500F-2L

YK2000-2L

YK2000-2XL

YK3000-2L

YK3000-2XL


container volume

L

0.6

0.6

1.5

2

2

3

3

Productspecification

cavity number


4

4

2

2

2

2

2

max container Dia

mm

68

68

93

103

103

130

130

max.container height

mm

250

250

340

340

340

340

340

maximun thread size

mm

40

40

45

45

45

45

45

Machine specification

theoretical yield

bph

4000

4000

2000

1800

1800

1600

1600

the opening stroke

mm

125

125

125

125

125

160

160

mold thickness

mm

180

180

180

180

180

200

200

mould center distance

mm

75

75

100

110

110

150

150

total power

kw

66

66

66

66

66

66

66

the actual use of power

kw

10~20

10~20

8~15

8~15

8~15

10~20

10~20

appearance size

m

3.9*1.6*2

4.6*1.6*2

3.35*1.5*2

3.35*1.5*2

4*1.5*2

3.9*1.6*2

4.6*1.6*2

weighre

Kg

2700

3500

2200

2400

3000

2800

3500

Air System

working pressure

bar

10

10

10

10

10

10

10

low air consumption

m3/min

1.6

1.6

1.6

1.6

1.6

1.6

1.6

blowing pressure

bar

30

30

30

30

30

30

30

high pressure gas consumption

m3/min

2.5

2.5

2

2

2

2.5

2.5

Chiller Water

operature pressure

bar

5

5

5

5

5

5

5

temperature range

10℃

10℃

10℃

10℃

10℃

10℃

10℃

water consumption

L/min

45

45

30

30

30

30

30

Machine size

appearance size

M

2.6*1.1*2.4

2.6*1.1*2.4

2.4*1.1*2.4

2.4*1.1*2.4

2.4*1.1*2.4

2.4*1.1*2.4

2.4*1.1*2.4

weight

kg

250

250

250

250

250

250

250

product-Yosion Machinery-Full Electrical Servo Normal Cylinder Blowing Machine-img-1
