Automatic pet blow molding machine bottle volume below 5000ml

这里可以自定义设置

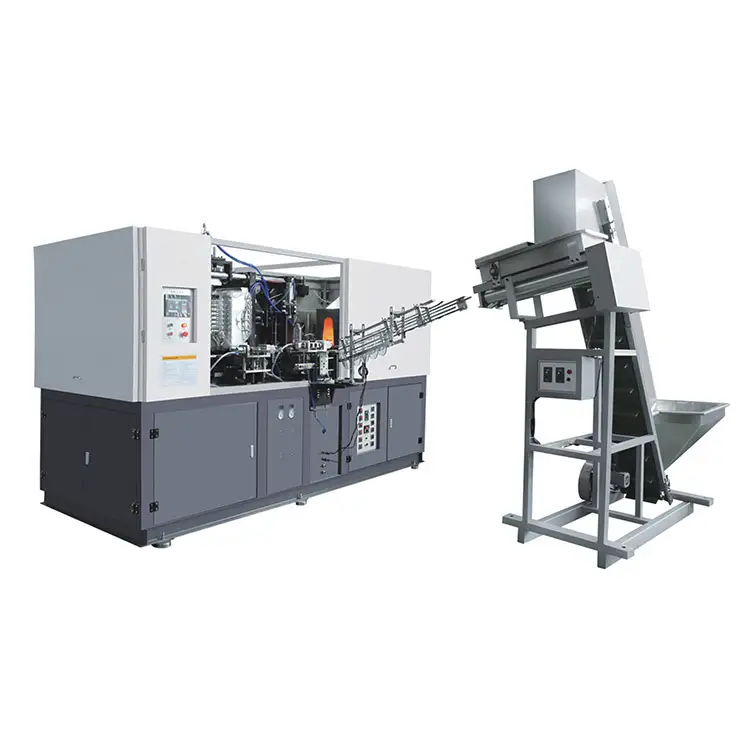

Automatic pet blow molding machine bottle volume below 5000ml
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Trade Terms: EXW, FOB NINGBO, Door to door.

Payment Terms: T/T, Western Union, PayPal.

Delivery Time:60 working days  .

Shipping: By sea

MOQ:1SETS

Place of Origin:TAIZHOU City, ZHEJIANG Province, China

Certificate:ISO9001:2008...CE


Add success, do you want to check your shopping cart?

该产品后台详情无内容

Machine Model To Recommend

Model

Volume

Neck

Max dia

Output

YK5000

<5000ml

<70mm

175mm

650bph

YK5000-2

<5000ml

<70mm

175mm

1200bph

YK5000-3

<5000ml

<70mm

175mm

1800bph

YK5000-4

<5000ml

<70mm

175mm

2400bph

PRODUCT DETAILS

The brand from the United States, north of California, by the Pacific Ocean and

INTRODUCTION

Use preform blowing bottle like foods container,oil container ,medicine bottle,chemical bottle etc
We can make machine with 1 cavity , 2 cavity ,3 cavity , 4 cavity , 6 cavity and 8 cavity to meet customer production  demand .



SCOPE OF APPLICATION

Water bottle,oil bottle, medical container, juice bottle, tea bottle, spices jars and bottle carbonated drinks bottle ,cosmetics  bottle ,shampoo bottle, nuts jar ,thicker bottle etc.

PRODUCT DESCRIPTION

Optimization design of a integrated templates, high strength,using lifetime
Template precision machining,running rapid and stable.
Can add high pressure gas recovery device as low pressure use.
Frequency conversion constant temperature and layered heating system make heating equality,finished product stable.
Auto-fault detection.
Use the advanced touch-screen computer control,easy cooperation.
Automatic feeding perform and picking up finished bottles.
Modular design.

Notice:Actual output depend on bottle shape and preform
the above technical parameters are subject to continual update.         please rake the real product as the base

MACHINE OPERATION DETAILS

Specializes in the research and manufacture of two-step PET/PP bottle blowing machine

PARAMETER

FULL AUTOMATIC SERVO PET bottle blow molding machineYK2000-4

MACHINE ADVANTAGES

Servo for choose introduction:
*Clamping servo can save low pressure gas 60%-70%, on the one hand, now with air compressor can invest less money, on the other hand, the production can save electricity, the money will be saved in a moment
*Close mold and drive servo can linkage, improve the efficiency of 0.5-0.8s
*Servo stretch with easy control   for stretch speed  ,can control the stretch rod length at screen computer , stable production .
*servo preform feeding very stable feed preform and save air .

All machine standard advantages:
*Adopt touch-type color HMI SYSTEM,easy to operate.
*All spares CNC processing,make sure all parts standard.
*bottle outlet system is able to add a linking unit and combine with conveyor system to connect to the filling machine.
*preform holder we have patented technology, our machine can change preform holder easier and fast within 5 minutes when blow different neck bottle , no need stop machine.

Suitable bottle

Can blow all kinds of PET bottles which contain water oil, medical, juice, tea, spices carbonated drinks,cosmetics,etc...

Component parts

PLC

SIEMENS (Germany)

Touch Screen

Weinview (Taiwan)

Cylinder

AIRTAC (Taiwan)

Working Valve

ARK (Korea)

Magnetic Switch

ALIF (Taiwan)

DC power

Schneider (France)

PRODUCT PARAMETERS

GENERAL INFORMATION

Unit

YK5000

HK5000-2

HK5000-3

HK5000-4



container volume

L

5L

5L

5

5

Productspecification

cavity number



1

2

3

4

max container Dia

mm

175

175

175

175

max.container height

mm

340

340

340

340

maximun thread size

mm

70

70

70

70

Machine specification

theoretical yield

bph

650

1200

1800

2400

the opening stroke

mm

220

220

220

220

mold thickness

mm

250

250

250

250

mould center distance

mm

200

200

200

200

total power

kw

50

50

75

100

the actual use of power

kw

10--15

15--20

25--28

30--35

appearance size

m

3.3*1.75*2

3.3*2.1*2

3.3*2.3*2

4.5*2.2*2

weighre

Kg

2000

4000

5000

6000

Air System

working pressure

bar

10

10

10

10

low air consumption

m3/min

1.2

2

2

2

blowing pressure

bar

30

30

30

30

high pressure gas consumption

m3/min

1.6

4

5.5

7

Chiller Water

operature pressure

bar

5

5

5

5

temperature range

10

10

10

10

water consumption

L/min

30

45

60

80

Machine size

appearance size

M

2.4*1.1*2.4

2.4*1.1*2.4

2.6*1.1*2.4

2.6*1.1*2.4

weight

kg

250

250

250

250

servo

stretching device











pushing device











preform loading device
