    PRODUCT DETAILS

    The brand Yosion from the United States, north of California, by the Pacific Ocean and Others.A semi-automatic bottle blowing machine is a machine that is used to blow and mold plastic bottles. It typically consists of a machine base, an air compressor, a heating unit, a blowing unit, and a mold. The operator loads plastic preforms into the machine, and the machine then heats the preforms and uses compressed air to blow them into the desired shape of the bottle. bottle, cosmetics bottle,wide-mouth Jar ,PET can etc.

    Semi automatic PET bottle blow molding machine 2
    Semi automatic PET bottle blow molding machine 3
    Semi automatic PET bottle blow molding machine 4

    semi automatic blowing machine advantages

    -Plastic bottle blowing machine adopt double arm clamping,with high clamping,Action flexible.
    - Adopt PLC control system, easy to oprate,maintenance conveniet,low-cost,time can be precisely controlled to 0.01seconds.
    - air system will be designed to move and inflatable divided into two parts to meet blow,movements of different air pressure requirem ents.
    - Using far infrared heater rotation frequency heating,the track to make heating uniformity,fast and reliable.
    - Different of the heating lamp equipped with independent temperature control device to ensure that the best preform heating effect.
    - Heating lamp under the direction can adjust according different preform.
    - Operate only one person,do not need special training.
    - Installatioon,start simple,Minimum space.
    - Upgrade power efficency
    - Simplified operation by HMI control panel
    - Modular design facilitates maintenance capacity.
    - Save investment and enhance capacity.

    Semi automatic PET bottle blow molding machine 5

    YS 880 Semi automatic pet blow molding machine

    HS CODE : 8477309000
    Product Volume: 0.2-2L
    Hourly Production 0.6L 800-1000Pcs/Hr
    Heater power : 380V 5-10kw
    Blowing Air Compressor 2.0-3.0Mpa 0.4-0.5m3/min
    Working Air Compressor :0.8Map 0.3m3/min
    Mould Stroke : 150mm
    Mould Thickness / Width
    120-180mm 320mm
    Stretching Stroke
    120-180mm
    Stretch Length
    350mm
    Machine Weight
    800kg
    Machine Dimension
    1320x580x1550mm 1600x580x1400mm
    ○●All specifications and designs are subject to change without notice.

    YS 880S Semi automatic PET bottle blow molding machine

    *Machine touch screen +pre-blow system +bottle take out full automatic
    HS CODE : 8477309000
    Product Volume: 0.2-2L
    Hourly Production 0.6L 100-1200Pcs/Hr
    Heater power : 380V 5-10kw
    Blowing Air Compressor 2.0-3.0Mpa 0.4-0.5m3/min
    Working Air Compressor :0.8Map 0.3m3/min
    Mould Stroke : 150mm
    Mould Thickness / Width
    120-180mm 320mm
    Stretching Stroke
    120-180mm
    Stretch Length
    350mm
    Machine Weight
    800kg
    Machine Dimension
    1320x580x1550mm 1600x580x1400mm
    ○●All specifications and designs are subject to change without notice.

    Configuration of main components of the semi automatic blow molding machine

    Remark:This configuration without air recycle, the automatic pet bottle blowing machine price will be different if add recycle system.

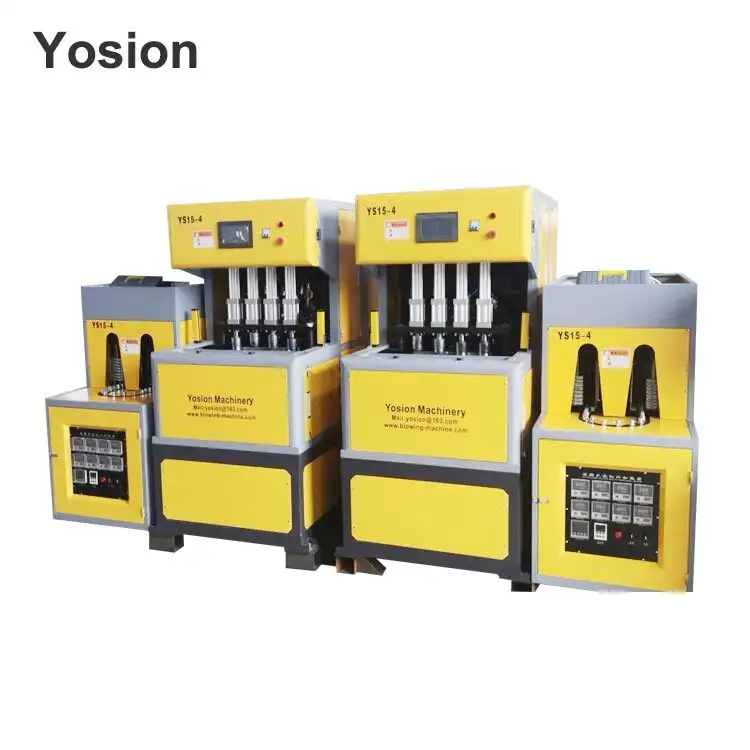

    YS15-4 Semi automatic PET bottle blow molding machine

    *Semi automatic blowing machine touch screen +pre-blow system +bottle take out full automatic

    HS CODE : 8477309000


    Blow Moulding Machine

    Type

    4cavities

    Theoretical output

    2400Pcs/H

    Product Capacity

    0.1-1.5L

    Diameter of Bottle Mouth

    15-38mm

    Diameter of Bottle Body

    40-90mm

    Height of Bottle

    300mm

    Max.Mold Thickness

    240mm

    Effective Area of Mold

    480x350mm2

    Clamping Stroke

    150mm

    Clamping Force

    200KN

    Diameter of Stretch Pin

    12mm

    Max.Stretch Stroke

    370mm

    Total Power

    18KW

    Overall Weight

    2.0T

    Working Pressure

    1.05-1.25MPa

    Blowing Pressure

    2.2-3.5MPa

    Cooling Water(6-10℃)

    0.3-0.5MPa

    Size

    1660x1000x2550mm,2600kgs

    Size of Oven(L.W.H)

    1800x750x1700mm,700kgs



    4,YS15-2S Semi automatic PET bottle blow molding machine
    HS CODE : 8477309000


    General Information

    YS15-2S

    Product Volume

    0.2-2L

    Hourly Production

    0.6L 1600-2000Pcs/Hr

    Heater power

    380V 5-16kw

    Blowing Air Compressor

    2.0-3.0Mpa 0.8m3/min

    Working Air Compressor

    0.8Map 0.8m3/min

    Mould Stroke

    150mm

    Mould Thickness / Width

    120-180mm 320mm

    Stretching Stroke

    120-180mm

    Stretch Length

    350mm

    Machine weight

    1250kg

    Machine dimension

    1320x580x1550mm*2 1600x580x1400mm*1

    All specifications and designs are subject to change without notice.

    Semi automatic PET bottle blow molding machine 6
    Semi automatic PET bottle blow molding machine spe
    Video Center

    MACHINE OPERATION DETAILS

    Yosion bottle blowing machine manufacturer specializes in the research and manufacture of two-step PET/PP bottle blowing machine. Contact us for inquiy pet bottle machine and semi automatic blow molding machine.Semi automatic blowing machine has been improved and designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely. Semi automatic blow molding machine is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles.

    Semi automatic PET bottle blow molding machine 7
    Semi automatic PET bottle blow molding machine 8
    Semi automatic PET bottle blow molding machine 9

    YS-5L Semi automatic PET bottle blow molding machine

    Detailed Product Description YS 18-2S Double arm relay control with far-infrared heater the max. capacity are 6 liters apply to blowing to pet,pc,pp or pe as raw materials to any shape of drinking bottle,mineral water bottles,pesticide bottles,cosmetic bottles.
    General Information
    Product Volume: 1-6L
    Hourly Production: 5L 700Pcs/Hr
    Heater power: 380V 5-12kw
    Blowing Air Compressor: 2.0-4.0Mpa 0.5m3/min
    Working Air Compressor: 0.8Map 0.4m3/min
    Mould Stroke: 220mm
    Mould Thickness / Width: 160-250mm 360mm
    Stretching Stroke: 130-230mm
    Stretch Length 350mm
    Machine Weight: 1000kg
    Machine Dimension: 2000x800x1800mm 2200x600x1500mm
    ○●All specifications and designs are subject to change without notice.

    YS 10L Semi automatic PET bottle blow molding machine

    General Information
    Product Volume: 6-10L
    Hourly Production: 300-400Pcs/Hr
    Total power: 380V 42kw
    Blowing Air Compressor: 1600L/min
    Working Air Compressor: 600L/min
    Clamping Stroke: 280mm
    Number of Cavity: 1-2
    Stretching Stroke: 450mm
    Clamping force: 26000kg
    Machine Weight: 11000kg
    Machine Dimension: 1950x650x1750mm ,2170x670x1600mm
    ○●All specifications and designs are subject to change without notice.

    YS 5 gallon Semi automatic PET bottle blow molding machine

    General Information: YS5 gallon
    Product Volume: 10-20L 5-Gallon
    Hourly Production: 40-60Pcs/Hr
    Heater power: 380V 10-24kw
    Blowing Air Compressor: 2.5-5Mpa 0.8m3/min
    Working Air Compressor: 0.8Map 0.8m3/min
    Mould Stroke: 350mm
    Mould Thickness / Width: 250-400mm 360mm
    Stretching Stroke: 130-200mm
    Stretch Length 500mm
    Machine Weight: 2000kg
    Machine Dimension: 2400x1800x1850mm 2250x650x1600mm
    ○●All specifications and designs are subject to change without notice.

    PARAMETER

    YS-PP Semi automatic PET bottle blow molding machine

    Oven spec

    Data

    Center distance

    381mm

    Max thread size

    70mm

    Length of lamp

    650mm

    Input power votage

    380V

    Total power

    64 kw

    The actual use of power

    10-15kw

    Appearance size

    4.2*0.75*1.5m

    Weight

    700kgs
